wacom tablet

System Software

Source (link to git-repo or to original if based on someone elses unmodified work): Add the source-code for this project on opencode.net

19
8.4
Available as/for: -
Description:

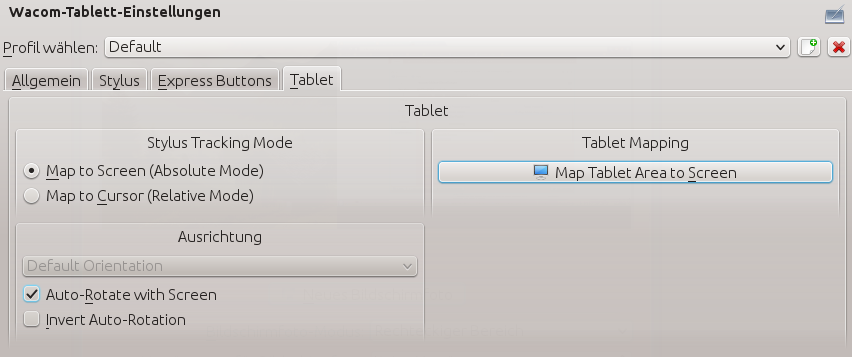

KDE 4 KCModule

This module implements a GUI for the Wacom Linux Drivers and extends it
with profile support to handle different button / pen layouts per profile.

For hardware support have a look at http://www.linuxwacom.sourceforge.net

Project Repository:
https://projects.kde.org/projects/extragear/base/wacomtablet

get the source with
git clone git://anongit.kde.org/wacomtablet

(K)Ubuntu 12.x & 13.04:
https://launchpad.net/~maret/+archive/wacom

OpenSUSE 12.2, 12.3 & Factory:
http://software.opensuse.org/download.html?project=home:Temar:wacom&package=kcm_tablet
Last changelog:

5 years ago

+++++++++++++++++++++++++++
# v3.0.0~beta1
First kde frameworks 5 release
* port kded to kf5
* port plasma widget to qml widget
* ported KCM to kf5
* support xcb and x11_input

Thanks a lot to Michael Abrahams, Juan Palacios, Weng Xuetian, Stephan Frank

There are still some known issue with the tablet screen mapping and hotplugging with xcb.

+++++++++++++++++++++++++++
# v2.1.0
* Add support for Cintiq 22HD 18 buttons
* Add image for the Cintiq 13HD layout
* Update Wacom Intuos PT S Finger touch device db entry
* Update Intuous button layout
* Update Wacom INTUOS Pen Small CTH-480 db entry (030E)
* Add Wacom Intuos Pro L PTH-851 to db (0316)
* Allow to setup Stylus/Eraser Tip Mosue button (Left-Handed Mode)
* Update database. Add HUION, add Waltop again, install missing vendors

Note:
you must install a wacom-driver 0.20 or higher
See:
http://linuxwacom.git.sourceforge.net/git/gitweb.cgi?p=linuxwacom/xf86-input-wacom;a=summary

267 comments
Comments/Ratings

Please login or register to add a comment or rating

godog

5 years ago

Application beautiful, congratulations!

I own a cintiq15" and finally thanks to this app I can set this as a tablet with windows without breaking my head (as graphic hate setup under any form of text), thanks!

It also works with Kubuntu 15.04 in kde5?

Report

BrendanScott

5 years ago

I have upgraded my system and am having trouble getting wacom tablet to work on opensuse 13.1. When I use ctests it tells me:
The following tests FAILED:
18 - KDED.DBusTabletService (Failed)
19 - KDED.TabletHandler (Failed)
Errors while running CTest


Thoughts?

Report

italicR

5 years ago

I just set up a new machine with Centos 7 and KDE. I built this from scratch because it did not come with the install, but I cannot for the life of me get the UI. I can see the project is building fine, but I can't tell if everything is put in the right places or if this version is just incompatible with my system. I can give you a build log if you need it. The only part I can get is the detection tool (tablet finder). From what I have read, kcm-wacomtablet is not loading in kded4. My tablet (intuos4) is recognized out of the box and I can technically use xsetwacom if I need, but I need profiles to support my Cintiq alongside it. I don't know what commands you need to give more detailed information, but these are the versions of the packages I have:

libwacom 0.8.3
libwacom-data 0.8.3
xorg-x11-drv-wacom 0.23.0-6
wacomtablet 2.1.0 (tagged)
kernel 3.10.0-229.4.2
qt 4.8.5-8
kde 4.10.5

I tried building xf86-input-wacom from source, but that just gave me xsetwacom, which already detects my hardware. Plus, rebuilding and installing wacomtablet on top of that didn't help. I have time to mess around with it, but I've already been beating my head into the keyboard for the last six hours.

Report

BrendanScott

5 years ago

I was having trouble with the buttons on my pen. They wouldn't work unless the pen was in contact with the tablet - eg no click while hovering.
This:
xsetwacom set 9 TabletPCButton off
Solved the problem, but I'm trying to work out why it happens in the first place.
Do you think it's wacom tablet setting me as a tabletpc?

Report

CyberAng3l

6 years ago

Any plans to support the configuration of multiple touchring modes out of the box as supported by this GIMP plugin?
http://registry.gimp.org/node/28096

Report

Typhon

6 years ago

Any plans to port this to KDE Frameworks 5 / Plasma 5 in the foreseeable future?

Report

C

Etric

6 years ago

Weng Xuetian ported it already to kf5 including a qml plasmoid as replacement for the current one. If you like you can chaeckout the kf5 branch.

Report

asteorid

6 years ago

Unfortunately it is not possible to create a profile. There is no default profile changes are not saved.

Christmas greetings

Report

9

uoowoolq

6 years ago

Model: Intuos Pro large (PTH-851)


I can't find tab "Express Buttons".

Report

9

bogdancovaciu

6 years ago

You may want to check this video and the links in description: https://www.youtube.com/watch?v=mjPjQhltQ0E

I put there what files i modified and also the link to your page. I think you did an amazing job by bringing to linux users the possibility to have configurable tablet as in mac os or windows.
Maybe you implement those buttons in the next release.
Cheers!

Report

9

bogdancovaciu

6 years ago

Just saw that also there is a problem when mapping the tablet. It ends up in "internal error" ...

Report

blue-

6 years ago

i use left-handed mouse settings - my primary and secondary buttons are flipped - which means that tapping with the stylus brings up a secondary click menu.
it works great if i set my mouse settings to right-handed, but then i have to use exclusively either mouse or tablet until i switch the settings back. is there any way to set the function of the primary pen button, or maybe change the hard-coded "right/left mouse buttons" to "primary/secondary"? thank you!

Report

charvolant

6 years ago

I would also like this a great deal. I've been fiddling about with xsetwacom but it makes things very difficult.

Looking back, this was brought up two and a half years ago and it would be nice to have a fix.

Report

dchmelik

6 years ago

On Slackware64, I am running wacomtablet-2.0-x86_64-1_SBo (built from SlackBuilds.org), and every time I go to calibrate my Cintiq 22HD Touch, KDE settings crashes. Also, anything I set, like rotation to match display rotation, is reset as if it was not saved, each time I open the settings.

Report

VectoR

6 years ago

Thank You to fixes in 2.0.2, the rpm done :)

Report

VectoR

6 years ago

[ 24%] Generating ui_touchpagewidget.h
uic: Error in line 128, column 45 : Unexpected attribute theme
File '/usr/src/RPM/BUILD/wacomtablet-2.0.1/src/kcmodule/touchpagewidget.ui' is not valid
[ 24%] Generating ui_buttonactionselectionwidget.h
uic: Error in line 134, column 55 : Unexpected attribute theme
File '/usr/src/RPM/BUILD/wacomtablet-2.0.1/src/kcmodule/buttonactionselectionwidget.ui' is not valid
[ 25%] Generating ui_buttonactionselectorwidget.h
uic: Error in line 41, column 33 : Unexpected attribute theme
File '/usr/src/RPM/BUILD/wacomtablet-2.0.1/src/kcmodule/buttonactionselectorwidget.ui' is not valid
[ 25%] Generating ui_tabletpagewidget.h
uic: Error in line 112, column 45 : Unexpected attribute theme
File '/usr/src/RPM/BUILD/wacomtablet-2.0.1/src/kcmodule/tabletpagewidget.ui' is not valid
Scanning dependencies of target kcm_wacomtablet
[ 26%] Building CXX object src/kcmodule/CMakeFiles/kcm_wacomtablet.dir/kcm_wacomtablet_automoc.o
[ 26%] Building CXX object src/kcmodule/CMakeFiles/kcm_wacomtablet.dir/buttonactionselectionwidget.o
/usr/src/RPM/BUILD/wacomtablet-2.0.1/src/kcmodule/buttonactionselectionwidget.cpp:23:44: fatal error: ui_buttonactionselectionwidget.h: No such file or directory
compilation terminated.
make[2]: *** [src/kcmodule/CMakeFiles/kcm_wacomtablet.dir/buttonactionselectionwidget.o] Error 1
make[1]: *** [src/kcmodule/CMakeFiles/kcm_wacomtablet.dir/all] Error 2
make: *** [all] Error 2

Report

C

Etric

6 years ago

small google search assumes this the error comes from an older Qt version.

http://mail.kde.org/pipermail/amarok-devel/2012-November/011218.html

what Qt Version do you use?

Report

VectoR

6 years ago

I've seen this post but this Qt not too old, my Qt version is 4.7.1

Report

gratchie

6 years ago

Any chance we could get this to work with KDE 4.3 / Centos6

Report

C

Etric

6 years ago

What is exactly the problem there?

It "usually" should work out-of-the-box
as long as you have a "recent" wacom driver (+xsetwacom) installed.

Report

gratchie

6 years ago

[ 20%] Building CXX object src/applet/CMakeFiles/plasma_applet_wacomtabletsettings.dir/tabletapplet.o
/localhome/gracie/wacomtablet-2.0.2/src/applet/tabletapplet.cpp:41:28: error: Plasma/Separator: No such file or directory
/localhome/gracie/wacomtablet-2.0.2/src/applet/tabletapplet.cpp: In member function ‘void Wacom::TabletApplet::buildDialog()’:
/localhome/gracie/wacomtablet-2.0.2/src/applet/tabletapplet.cpp:318: error: ‘KIcon’ was not declared in this scope
/localhome/gracie/wacomtablet-2.0.2/src/applet/tabletapplet.cpp:334: error: ‘Separator’ is not a member of ‘Plasma’
/localhome/gracie/wacomtablet-2.0.2/src/applet/tabletapplet.cpp:334: error: ‘separator’ was not declared in this scope
/localhome/gracie/wacomtablet-2.0.2/src/applet/tabletapplet.cpp:334: error: expected type-specifier
/localhome/gracie/wacomtablet-2.0.2/src/applet/tabletapplet.cpp:334: error: expected ‘;’
/localhome/gracie/wacomtablet-2.0.2/src/applet/tabletapplet.cpp: In member function ‘void Wacom::TabletApplet::buildConfigDialog()’:
/localhome/gracie/wacomtablet-2.0.2/src/applet/tabletapplet.cpp:434: error: ‘KIcon’ was not declared in this scope
/localhome/gracie/wacomtablet-2.0.2/src/applet/tabletapplet.cpp: In member function ‘void Wacom::TabletApplet::buildErrorDialog()’:
/localhome/gracie/wacomtablet-2.0.2/src/applet/tabletapplet.cpp:514: error: ‘KIcon’ was not declared in this scope
make[2]: *** [src/applet/CMakeFiles/plasma_applet_wacomtabletsettings.dir/tabletapplet.o] Error 1
make[1]: *** [src/applet/CMakeFiles/plasma_applet_wacomtabletsettings.dir/all] Error 2

Report

Ray-Ven

6 years ago

Don't know if you're still supporting this application. I'm just wondering why my touchscreen has been recognized (singletouch works) but I'm not able to configure it.
Probably someone can help?

xsetwacom --list
Wacom ISDv4 EC Pen stylus id: 11 type: STYLUS
Wacom ISDv4 EC Pen eraser id: 14 type: ERASER

Report

atrox

7 years ago

On openSUSE 13.1 I still get that error. Creating configuration file manually didn't help...

Report

C

Etric

7 years ago

Could you tell me what tablet you use?

Usually this happens only when your tablet is not in the list of known devices. Which is especially for "newer" devices always the case at the moment.

I need the tablet id
xsetwacom get "Wacom Bamboo" tabletid

where "Wacom Bamboo" is the name of your tablet

Report

atrox

7 years ago

BTW, it's DELL XT3.

Report
