Description:

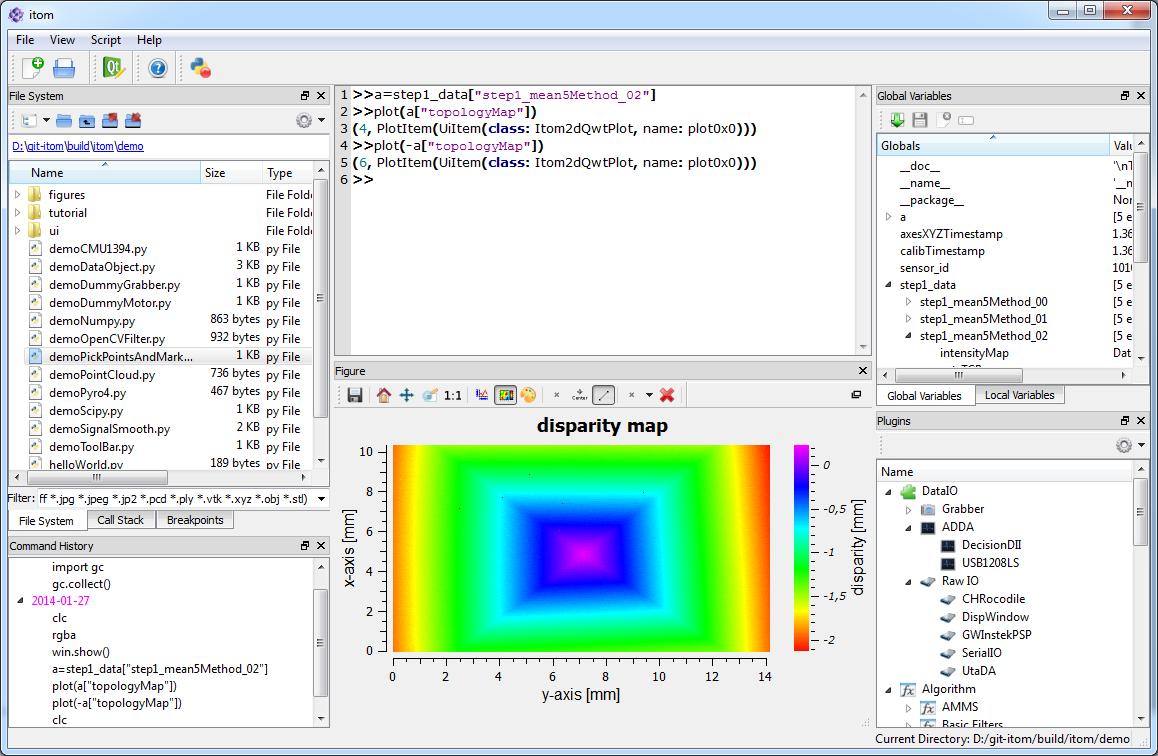

itom is an open source software suite for operating measurement systems, laboratory automation and data evaluation.

One main application of itom is the development and operation of sensor and measurement system for instance in a laboratory environment. Therefore the software is able to communicate with a wide range of different hardware systems, such as cameras or actuators. Additionally it provides a diversified set of evaluation and data processing methods.

All this is implemented by an extensible plugin system that is based on Qt 4 or 5. Hardware instances run in their own threads such that they can be simultaneously and robustly controlled and operated.

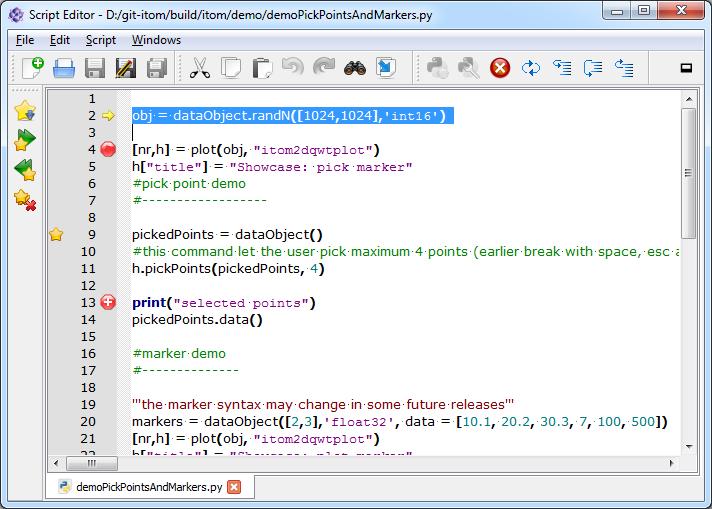

The software comes with Python 3 as fully embedded scripting language, which allows the rapid prototyping of any setups or measurement systems. The internal matrix structure of itom is based on OpenCV matrices and is fully compatible to Numpy arrays of Python. The scripting environment provides useful features like a Python debugger, syntax highlighting, auto completion, syntax checks...

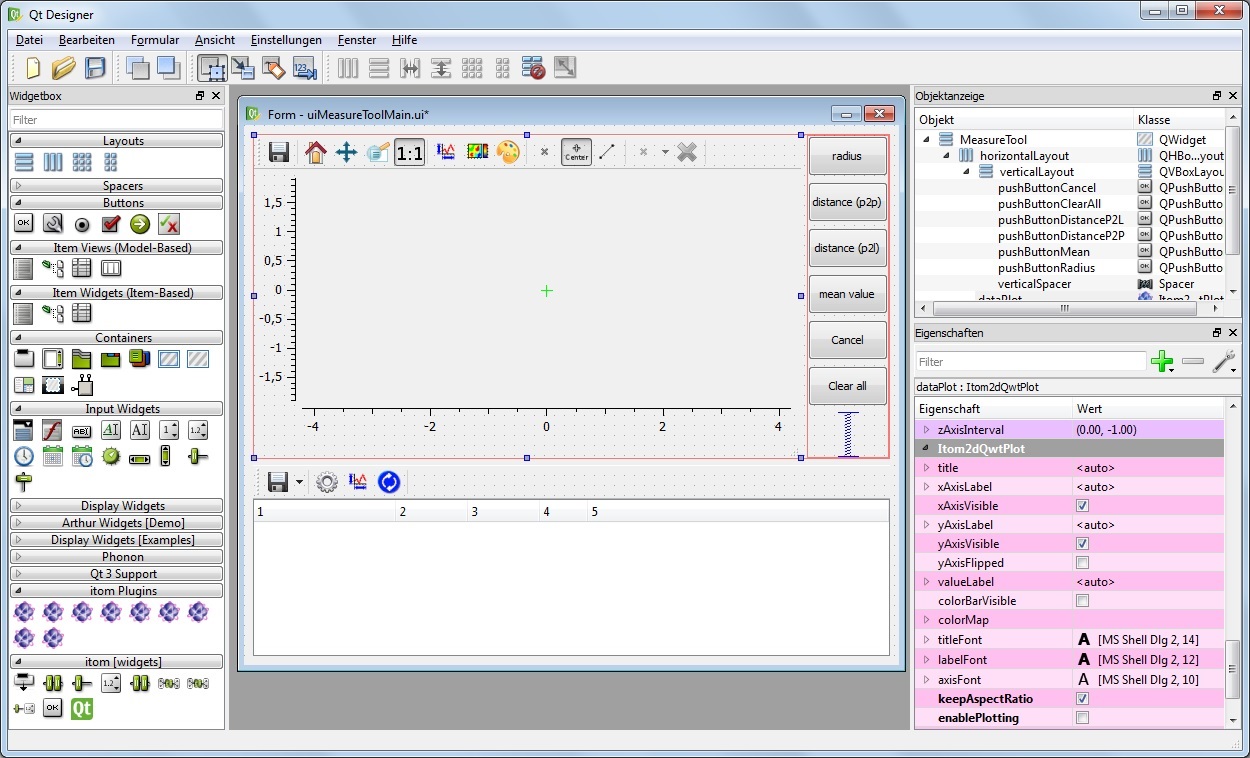

Using the QtDesigner, user defined graphical user interfaces can be layouted and finally programmed with Python. These user interfaces can not only be equiped with default Qt widgets but itom comes with a set of further designer plugins, such as hardware control elements for the hardware plugins, plot widgets or live images for connected cameras.

There are setups available for Windows 32bit and 64bit. itom also runs under linux (needs to be build from source) and is mainly tested with Ubuntu, Kubuntu, Lubuntu (12.04, 14.04 and 16.10) and Debian KDE.

See http://itom.bitbucket.org for more information.
Last changelog:

4 years ago

Version 2.1.0

many bugfixes
Setup version compiled with Qt 5.3, Python 3.5.1 and Numpy 1.9.2
improved source code and user documentation
new plugins included (VRMagic, MeasurementComputing, RawImport, Roughness, hidApi, ...)
new methods and classes added to Python module itom
more demo files added
Python GIL enabled to allow the usage of the concurrent (threading...) module in Python
for more changes see http://itom.bitbucket.org/latest/docs/00_releaseNotes/whats-new.html

Version 2.0.0

many bugfixes
Setup version compiled with Qt 5.3, Python 3.4.2 and Numpy 1.9.2
integrated GUI based Python package manager
new plugins included (Standa 8SMC4-USB, CommonVisionBlox, AvantesAvaSpec, PCOSensicam, LibUSB, ...)
easier integration of codec information to Python scripts
Support for Mac OS added
new methods and classes added to Python module itom
improved 1D and 2D plots, a VTK 3D visualization plugin for point clouds, polygon meshes and geometric items added
for more changes see http://itom.bitbucket.org/latest/docs/00_releaseNotes/whats-new.html

Version 1.4.0

many bugfixes
documentation of GUI elements and getting started improved
Python script navigator added to script editor
there exists a new all-in-one build environment that include all 3rd party libraries that are required for building itom using MS VS 2010 with Qt5.3 (see sourceforge.net/p/itom)
new plugins included (AVTVimba, AndorSDK3, NweportSMC100, libmodbus, PI_GCS2, SuperlumBS, NI-DAQmx...)

Version 1.3.0

many bugs fixed
improved breakpoint and callstack toolboxes
matplotlib output windows have now the same functionality than other plot windows
full Qt5 support
CMake 3.0 support
improved offline and internal documentation including the help toolbox
more plugins added (IDS Imaging cameras, Thorlabs CCS spectrometer, OpenGL based fullscreen display of arbitrary images / arrays
new OpenGL based 3D array and point cloud visualization (LPGL licensed, provided by company http://www.twip-os.org)


For the full changelog see http://itom.bitbucket.org/latest/docs/00_releaseNotes/whats-new.html
